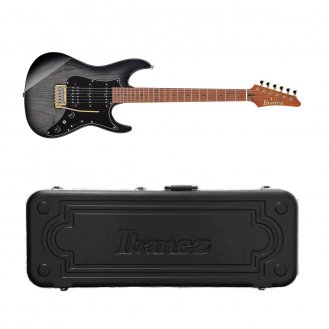

Ibanez AZ2204AG Prestige Transparent Gray Burst Guitar + Case



Includes a hardshell case!



SPECS

Neck type AZ Oval C/S-TECH WOOD Roasted Maple neck

Top/back/body Ash body

Fretboard S-TECH WOOD Roasted Maple fretboard Black dot inlay

Fret Jumbo Stainless Steel frets Prestige fret edge treatment

Number of frets 22

Bridge Gotoh® T1802 bridge

String space 10.5mm

Neck pickup Seymour Duncan® Hyperion™ (S) neck pickup Passive/Alnico

Middle pickup Seymour Duncan® Hyperion™ (S) middle pickup Passive/Alnico

Bridge pickup Seymour Duncan® Hyperion™ (H) bridge pickup Passive/Alnico

Factory tuning 1E,2B,3G,4D,5A,6E

Strings D'Addario® EXL110

String gauge .010/.013/.017/.026/.036/.046

Nut Bone nut

Hardware color Gold



NECK DIMENSIONS

Scale : 648mm

a : Width 42mm at NUT

b : Width 56.4mm at 22F

c : Thickness 20.5mm at 1F

d : Thickness 22.5mm at 12F

Radius : 305mmR



FEATURES

Ash body

The Ash body delivers a pleasant brightness and rich sustain.



Gotoh® T1802 tremolo bridge

The T1802 tremolo bridge features machined titanium saddles and a machined steel tremolo block for a quick response, thick lows and rich highs. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.



dyna-MIX 9 switching system w/Alter switch

dyna-MIX 9 offers nine sound variations, and can easily switch between humbucker and single coil modes with just the mini switch. One mode is even able to simulate a humbucker sound from the combination of the 2 single coil pickups.



Seymour Duncan® Hyperion™ Pickups

Seymour Duncan® Hyperion™ Pickups feature a moderate output through Alnico-5 magnets to keep the clarity of the fundamental tone when using a distortion sound, and to deliver a clear pick attack. From treble to bass, the overall tonal balance is evenly adjusted., and works well with various effect pedals.

Oil-impregnated Bone nut /Stainless Steel Frets

The Oil-impregnated bone nut provides superior tuning stability and warm rich resonance. Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes.



S-TECH WOOD Roasted Maple fretboard w/Black dot inlay

S-TECH special roasted treatment provides a superior attack and a well-balanced tone and a rich sustain. In order to achieve supreme neck grip comfort, the fretboard edge is finished with a smooth curve.



Oval C S-TECH WOOD Roasted Maple neck

The S-TECH special roasted treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes. The neck is sealed with an oil finish which helps make it feel similar to a well-played guitar neck.



Ergonomic rear body contour

Ergonomic rear body contour

A shallow body back contour and a big forearm contour make the guitar body fit the player naturally, thus increasing playing comfort. The AZ body has a deep waist and different radii on each body edge curve, making it easier to play in both standing or sitting positions.



Gotoh Magnum Lock machine heads w/H.A.P.(Height Adjustable Post)

Gotoh® Magnum Lock machine heads w/H.A.P.(Height Adjustable Post)

GOTOH® MAGNUM LOCK® machine heads have an established reputation for tuning stability. Its H. A. P® (Height Adjustable Post). system allows for the adjustment of string posts for the appropriate tension of each string.



Luminlay side dot inlays

Luminlay side dot inlays

The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.



Super All Access Neck Joint

Super All Access Neck Joint

The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.
