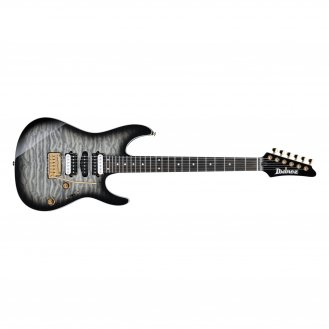

Ibanez AZ47P1QM Premium Guitar Black Ice Burst + Gig Bag NEW



Includes an Ibanez gig bag!



SPECS

Neck type AZ Oval C Roasted Maple neck

Top/back/body Quilted Maple top American Basswood body

Fretboard Ebony fretboard Mother of Pearl dot inlay

Fret Jumbo Stainless Steel frets

Number of frets 24

Bridge Gotoh® T1502 bridge

String space 10.5mm

Neck pickup DiMarzio® Air Norton™ (H) neck pickup Passive/Alnico

Middle pickup DiMarzio® True Velvet™ (S) middle pickup Passive/Alnico

Bridge pickup DiMarzio® The Tone Zone® (H) bridge pickup Passive/Alnico

Factory tuning 1E,2B,3G,4D,5A,6E

Strings D'Addario® EXL110

String gauge .010/.013/.017/.026/.036/.046

Nut Graph Tech® nut

Hardware color Gold



NECK DIMENSIONS

Scale : 648mm/25.5"

a : Width 42mm at NUT

b : Width 57mm at 24F

c : Thickness 20.5mm at 1F

d : Thickness 22.5mm at 12F

Radius : 305mmR



FEATURES

DiMarzio® Air Norton™ / True Velvet™ / The Tone Zone® pickups

The DiMarzio® Air Norton™, True Velvet™ and Tone Zone® pickups offer depth, warmth and rich dynamics when combined with the 5-way pickup switch.



Ebony fretboard

Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.



Luminescent side dot inlays

The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.



Gotoh® MG-T locking machine heads

The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.



Oval C Roasted Maple neck

Heat-treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes.



Gotoh® T1502 tremolo bridge

The T1502 tremolo bridge features steel saddles and a die-cast zinc tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.



Ergonomic rear body contour

A shallow body back contour and a big forearm contour make the guitar body fit the player naturally, thus increasing playing comfort. The AZ body has a deep waist and different radii on each body edge curve, making it easier to play in both standing or sitting positions.



Super All Access Neck Joint

The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.
